| Documentation | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Documentation Version: 8.6.0 2013-02-05 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Contents | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
0.1 Tryout Version 3 Configuration of import of data 3.1 Field assignment for the
import of data 3.2.1 Update of the Cumulus Field List 3.3 Import of metadata - Examples
3.3.1 Import
of data into a string list field 3.4 Import of metadata - More examples
3.4.1 Import into multilanguage text fields
5.1 Import File Preferences 7.1 Cumulus Importer - Special Functions
7.1.1 Support of Multi Catalog Collections |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 0 Introduction | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
The Cumulus Importer lets you to import information from a text file into a Canto Cumulus catalog (Remark: if you want to import data into a Cumulus catalog version 5.x, please use our Cumulus Importer 3.1.1). With the help of the software you can import information from any other database system, Excel spreadsheet or text list into Cumulus. The data should be exported from the database system in the standard database export format (database fields delimited by tabulator character). You can assign the information to each and every Cumulus field (record field or category field). The data can be imported into text fields, string list fields or into the list of categories. The demo version of the software is a fully functional version of the 'Cumulus Importer', so you can use the demo version to test each and every functionality. The number of records that you can import with the demo version into a Cumulus catalog is limited to 10 records per session. You can order a full working version of the software here. The Cumulus Importer comes with a set of example files. To test the examples described in this readme file please use the Cumulus catalog 'furniture.ccf', which you can find in the folder 'Examples'. Additionally you will find two text files in the folder with data to import into the catalog. In the sub folder 'Import scheme files' you will find some examples for field assignments for importing data into a Cumulus catalog. The import scheme files contain field assignment information and the path to the textfile. You can only use the import scheme file, if the path to the text file points to the standard installation path (Windows: 'C:\Program Files\Canto\Cumulus Importer 8' or MacOSX: '/Applications/Cumulus Importer 8'). Of course, you can change the path in the import scheme file with every text editor to use the import scheme with the text files in a different location.
A special thanks to all who have contributed to the development and improvement of this product. Thank you very much to all our current Cumulus Importer customer who helped us to develop this useful product. We are looking forward to even more feedback from you to make the product even better. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1 Installation | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
When you download the Cumulus Importer product from the web, you get the file 'CumulusImporter86.zip'. Unpack the file 'CumulusImporter8.zip' to get the folder 'Cumulus Importer 8.6'. If you get the product on CD-ROM, you will find the folder 'Cumulus Importer 8.6' in a sub directory named after your operating system ('Windows' or 'MacOSX'). Installation under Windows: copy the folder into the directory 'Canto' on your system hard-disk ('C:\Program Files\Canto'). If you are using a 64bit Windows Operating System copy the folder into the directory 'Canto' on your system hard-disk at ('C:\Program Files (x86)\Canto'). Installation under Mac OS X: copy the folder into the directory 'Applications' on your system hard-disk ('Macintosh HD/Applications'). If you want to use the examples shipped with the software, it is import to follow these copy instructions. The installation folder contains the following files and folders:
In the copied folder you will find the sub-folder 'CumulusImporter'. Copy this folder (and its contents) into the 'ejp' folder in the installation folder of your Cumulus application. Under Windows it is 'C:\Program Files\Canto\Cumulus Client\ejp', under Mac OS X it is 'Macintosh HD/Applications/Cumulus Client'.The 'ejp' folder of the Cumulus application can be found in the Cumulus package. You can reach this folder by clicking the mouse-button while holding down the CTRL-key on the Cumulus application. Click on 'Show Package Contents' in the context-menu. This will open a finder-window with a subfolder 'Contents'. In that folder you will find a Mac OS X folder and there you will find the 'ejp' folder in which to copy the 'CumulusImporter.ejp' file. Restart the Cumulus application to use the Cumulus Importer, it will show a new menu item in your Cumulus application called 'Importer'. You will get a serial number for the Cumulus Importer with the full version of the product. Since version 8.6.0 of Cumulus Importer this is a Cumulus Server serial number, so you have to add the number to the list of Cumulus serials in the license dialog of the Cumulus Server Console to unlock the version. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2 Usage | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Important: before you can import information into a Cumulus catalog with the help of the 'Cumulus Importer' you have to make a safety copy of the catalog before you can go ahead and change the meta data in the catalog. There is not UNDO function for the import available. You can only go back to the initial version of the catalog if there is safety copy available that you can open instead of the changed catalog.
To import information from a text file into a Cumulus catalog with the help of the Cumulus Importer, please do the following:
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 3 Configuration of import of data | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
3.1 Field assignment for the import of data
In the example above text information from the file 'Furniture.txt' is imported into the Cumulus catalog 'Furniture'. The text file contains information about different designer furniture products. Please select the text file, that contains the data that you want to import into your Cumulus catalog, by using the menu item 'Importer>Open...' and select the file 'furniture.txt' that you can find in the folder 'Examples'.
The 'Cumulus Importer' displays the list of the first record of the text file in the first column of the table. The field values are separated by tabulator. The first line of the text file is: Product Group tabulator Product Name tabulator Product Type tabulator Designer tabulator Color tabulator Price Euro tabulator Orders per Month tabulator Release Date tabulator Filename A lot of database systems use the Tabulator as the field delimiter (even Cumulus while exporting data from a catalog). If your text file uses a Semicolon as the separator, you can change the setup in the options to let the Cumulus Importer work with this type of text file. Often the line of the text file does not contain information that you want to import in your catalog. You can disable the import of the data of the first line by activating the option 'Ignore first record of text file'.
At the bottom of the dialog you will find the number of records in the text file. Remark: the number of records is always the number of lines in the text file, independant from your selection to ignore the first record or not.
This example file only contains 6 lines of text that should be imported. You can step through the lines by clicking on the buttons << and >>. In this example the text line holds 9 different fields, delimited by the Tabulator character. You have to define a relation between a field of the text file and a field in the Cumulus catalog. The relation field is necessary to perform the search for the appropriate records. In our example, the text file holds the name of the file and we can use this information as the relation field for the data import. Select the 9th line of the list, which holds the file name and assign the Cumulus field 'Asset Name' by clicking on the button 'Select...'. After seleting the Cumulus field you will be asked if the field is a relation field or not. Your answer should be 'Yes' to let this assignment be a relation. While importing the data the Cumulus importer will perform a search for 'Asset Name' and import the data into the records found. If no record is found in Cumulus, a message will be added to the log file (depending on your preferences setup). The following information should be imported:
Please select the line that you want to assign a Cumulus field to. Click on the button 'Select...'. You have to decide, if you want to import data into Cumulus record fields or category fields.
In this example we want to import data into Cumulus record fields. Remark: the Cumulus category list is a virtual record field (and NOT a category field)! After selecting the field type, you can not change this setup anymore until you restart the application by opening a new Importer window.
The 'Cumulus Importer' would now import field 9 of the text file into the Cumulus record field 'Asset Name'. You can delete this assignment by selecting the appropriate line in the list and by clicking the Backspace or Delete key. In this case, we do not want to import field 9 into the field 'Asset Name', but the Cumulus Importer should use field 9 as a relation field between the text file and the database.
Select 'this field defines the relation' and also specify the search condition that meets your needs (usually 'is'). The Cumulus Importer will create a search query to perform a search for the records. This query will be displayed as an example at the bottom of the dialog. After selecting the relation, the line is marked with the search condition in square bracket (example: Asset Name [is]) which should indicate that the field is a reference field and is not imported into the catalog but used to find the appropriate records. For the import of the categories, we select line 1 to 4 at once and click on the button 'Select...'. Please select the record field 'Categories' in the list of fields. The categories should get a master category to structure the category list. You can define the names of the master categories in the third column of the table:
The additional information function is available for category import and for import into text fields. For text fields, the additional information is imported prior to the text from the field of the text file. For further details on this topic, please read and try Example 3. This import scheme is used and further explained in Example 4. 3.2 Further Information about the Configuration 3.2.1 Update of the Cumulus Field List When opening the Cumulus Field List dialog for the first time, the Cumulus Importer reads all the fields from the Cumulus catalog. If you change the field definition of the Cumulus catalog in the meantime, you can update the field list by closing the Importer window.
You can update your Cumulus field list by opening a new import window. 3.2.2 Import of Data without Record Field Entries With the help of the 'Cumulus Importer' you can also import data, that will not be imported into Cumulus record fields or category fields. In this case, you do not have to define a relation field. This is when you import data into the category list or into a string list field. You will find a detailed explaination of what to do in the Example 1 and Example 2. 3.2.2.1 Import of Data into the Category List You can assign each field of the text file to the Cumulus record field 'Categories'. The newly created categories do not have to be assigned to records while they are imported. It is also possible to define master categories. If one field of the text file holds a lot of categories delimited by comma or blank, you can let the Cumulus Importer split the text before importing it as one category. You will find an example of the import into the category list in Example 2. 3.2.2.2 Import of Data into a String List With the Cumulus Importer it is also possible to import data into a string list field. It is not necessary that the newly created list entries are assigned to records. Entries will only be added to the list once and they are sorted alphabetically. You will find an example of the import into a string list field in Example 1. 3.2.2.3 Import of Data into Category Fields The 'Cumulus Importer' can also import data into category fields. The steps for the assignment of the import into the category fields is equal to what you have learned before. 3.2.2.3.1 Import of Data into Category Fields If you want to import data into category fields, you have to select the correct Cumulus field type first: Category Fields.

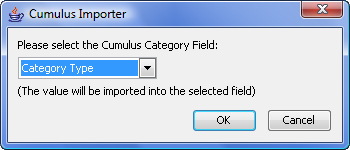

If you want to import data into category fields, you have to define a relation between the data from the text file and the field 'Category Name'.
After setting the relation, you can specify the field that should be filled by the Importer as usual.
Canto Cumulus supports a long list of field types:
The Cumulus Importer supports all the field types that are important for the import of metadata. The current version of the Importer does not support the following field types: - Data Size Usually all these field types are used internally by Cumulus and the import of metadata into these field types would damage internal information of your Cumulus Catalogs. Therefor we do not allow imports into these field types. The Cumulus Importer log file shows messages and errors created while importing metadata. If you want to get more technical information on how your metadata is 'treated' during the import process, you can switch on a debug log. Add the line 'debug=true' to your Importer License file to activate the debug log. Under Windows you can find your Importer License file ('ImporterLicense.properties') at 'C:\Program Files\Canto\Cumulus Client\conf, under Mac OS X it is inside the 'conf' folder inside your Cumulus application. It can be found inside the Cumulus package. You can reach this folder by clicking the mouse-button while holding down the CTRL-key on the Cumulus application. Click on 'Show Package Contents' in the context-menu. This will open a finder-window with a subfolder 'Contents'. In that folder you will find a 'Mac OS' folder and there you will find the 'conf' folder which contains the 'ImporterLicense.properties' file.
The Importer license file can be found in the 'conf' folder of your Cumulus Client installation folder ('ImporterLicense.properties'). It is a plain text file that holds your license information and can be edited with every text editor. The debug log file will be created in the folder 'Cumulus Importer 8' and the name of the file is 'Cumulus Importer Debug Log.txt'.
To explain the usage of the Cumulus Importer, the software comes with a set of example files. You will find the example files in the 'Examples' folder of your installation folder (usually 'C:\Program Files\Canto\Cumulus Importer 8\' on Windows or 'Macintosh HD/Applications/Cumulus Importer 8' on Mac OS X). Please open the Cumulus example catalog 'Furniture.ccf' that comes with the software. The catalog is also located in the 'Examples' folder. The catalog contains necessary fields and records for the examples. You will find a shortcut to the 'Examples' folder in the 'Programs' menu. The example catalog contains 4 additional record fields:
In the subfolder 'Import scheme files' you will find predefined import schemes that make use of the text files and the Cumulus example catalog 'Furniture'. Remark: the import scheme file contains the path to the text file, so if you have installed the software into a different than the standard folder please make sure that you do change the path to the text file in the import scheme file before using it.
3.3.1 Example 1: Import into a String List Field In this example a list of colors from a text file should be imported into a Cumulus string list field named 'Colors'. You will find the field assignments necessary for this example in the import scheme file 'Colors import scheme.txt' in the folder 'Import scheme files'. In the Cumulus example catalog named 'Furniture' you will already find a record field named 'Colors'. It is defined as a string list field. Please change your Cumulus Client setup, so the field is displayed in your information window. This is what you have to do to make the right assignments inside the Cumulus Importer to import the data (without the help of the import scheme file):
After the data import the string list 'Colors' has the following contents:
3.3.2 Example 2: Import into the Category List In this example, information from a text file should be imported into the Cumulus category list. The text file 'Furniture.txt' contains information about product groups, product names, product types, the name of the designer and the colors of the product. We want to have all this information as categories in the category list. You will find the field assignments necessary for this example in the import scheme file 'Categories import scheme.txt' in the folder 'Import scheme files'. This is what you have to do to make the right assignments inside the Cumulus Importer to import the data (without the help of the import scheme file):
After importing the example data into the catalog 'Furniture' the category list looks like this:
It is also possible to import complete hierarchical category structures. Therefor it is necessary to define a category level delimiter in the application preferences (Default: empty).
If you import a category where the name contains the delimiter, the string is transformed into single words and a hierarchical structure is created with these categories. If you import a category like Sports/Water Sports/Swimming
with the specification above, the new categories are created like this:
Because the field 'Additional Info' does not contain a value, the new categories are created in the 'All' Category Tree (under the master category '$All'). If you would like to import categories into the 'Categories' part of the Categories Tree, you need the following setup:
With the specification above, the new categories are created like this:
You can also use category hierarchies with the 'Additional Info' parameter:
In this example a hierarchy 'Images/Themes' will be created under the $Categories master category before importing the field value. This is the result of the setting above:
3.3.3 Example 3: Import into Record Fields (Notes Field) In this example a lot of information from the text file 'Furniture.txt' should be imported into the Cumulus text field named 'Notes'. You will find the field assignments necessary for this example in the import scheme file 'Notes import scheme.txt' in the folder 'Import scheme files'. In the Cumulus example catalog named 'Furniture' you will already find a record field named 'Notes'. It is defined as a text field. Please change your Cumulus Client setup, so the field is displayed in your information window. This is what you have to do to make the right assignments inside the Cumulus Importer to import the data (without the help of the import scheme file):
After importing the data, the 'Notes' field of the catalog 'Furniture' has the following contents:
3.3.4 Example 4: Import into Record Fields In this example, information from the text file 'Furniture.txt' should be imported into different Cumulus record fields in one step. You will find the field assignments necessary for this example in the import scheme file 'All fields import scheme.txt' in the folder 'Import scheme files'. This is what you have to do to make the right assignments inside the Cumulus Importer to import the data (without the help of the import scheme file):
After importing the data, the catalog 'Furniture' has the following contents:
3.4 Import of metadata - More examples The following examples will show more import scenarios. For these examples we do not ship import scheme files, so please have a closer look at the screenshots of the import settings. 3.4.1 Import into multilanguage text fields Cumulus allows to use multiple languages in text fields. The needed languages can be configured in the field properties:
To import the metadata into the different language fields, you can select the language fields from the list of fieldnames. You will find the language in brackets behind the field name (like in 'Notes (French)'). The field name without a language is the base field (for the specified base language).
In the following example the field 'Category Name' is a multiple language field also supporting German, French and Spanish to make use of categories trees in different languages.
In the import example above a new category 'black' is created (if not already available) and the German, French and Spanish translation are imported into the same category. 3.4.2 Import of asset references Since version 8.6 of the Cumulus Importer it is also possbile to import Asset References into the Cumulus catalog. So if your import file contains valid file paths that can be used as Asset Reference, you can import these into the Asset Reference field.
If you import asset references into the catalog, Cumulus will check if the paths to files are valid. If the reference is not a valid path, it will not be imported into the catalog and the asset reference will not be changed in the record. An error message is logged in that case. 3.4.3 Multi-langue import into list fields Since version 8.6 of the Cumulus Importer it is also possbile to import multi-language metadata into list fields. Example:
In this example the Importer tries to create a new list enty 'red', if it is not already available in the list. This list entry will also get the German translation 'rot', the French translation 'rouge' and the Spanish translation 'rojo' (based on the setting above). Please note that a String list field is not a multi-language field, but the list itself can have multiple languages. This is why the language symbol for additional languages is <> and not (). The language can be selected from the list of available languages after the second(!) use of the field in the specification.
After importing the colors into the list field 'Colors', the Cumulus String List Editor should have the following list entries:
Remark: in this example the languages German, French and Spanish have been imported togehter with the main language English. All the other languages that have not been imported explicitely (Danish, Dutch, ...) will get the language value of the main language English (Cumulus Standard).
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 4 Menu Items | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Open... Open the text file, which holds the informationen that you want to import into a Cumulus catalog. Open Import Scheme... You can open an import scheme file, which holds information about the text file, the Cumulus catalog and the field assignments. After loading an import scheme file you can immediately start importing the data into the Cumulus catalog. Save Import Scheme... You can save all your preferences including the field assignments, name and path of the text file, the name of the Cumulus catalog and all the application preferences into an import scheme file. You will be asked to specify the name of the file. You can save it in each and every folder, but we recommend to save the file in the 'Import scheme files' folder. Preferences... Click this menu item to open the application preferences dialog. License... If you have bought a full version of the product, you can specify the serial of the full version here to unlock all the functionality of the software. Info...
The info dialog displays the current version and registration information of your Cumulus Importer application. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 5 Application Preferences | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field Delimiter The field delimiter separates the fields in the text file. You can specify 'Tabulator' or a single character as the delimiter. The commonly used field delimiter is 'Tabulator'. Category Delimiter The category delimiter seperates words in a field of the text file. If you want to import the words as single categories and they are delimited e.g. by Comma or Space, the Cumulus Importer will split the text of the field before creating new categories. The delimiter is a single character. Category Level Delimiter With the help of this parameter you can create hierarchical category lists: Category Level Delimiter: / Example - Category name to import: Sports/Water Sports/Swimming If you have defined '/' as the category level, this example category will be imported like this: 'Sports' will be created as a master category and 'Water Sports' will be imported as its sub category.'Swimming' will be imported as a sub category to 'Water Sports'. Remark: the same mechanism is used while defining additional information to categories. If the additional information contains the category level delimiter, a hierarchical category structure will be created instead of just one category with the given name. Character Encoding You can specify the character encoding used when saving the import text file. This is necessary if the text files contain special characters (for example the German example text files contain ä, ö, ü, ß) and the metadata shall be imported on another platform (Mac OS X/Windows). This is the reason why our Importscheme files make use of 'ISO-8859-1' as the Character Encoding attribute. This allows to read the special characters correctly on the Mac OS X platform, although the files have been created under Windows. Click on Valid Character Encodings to go to the web and get a list of valid encodings. If your text file has been created on the same platform that you use for importing, you usually do not need the parameter, as the encoding used for saving the file is usually the same as the encoding used for reading the data on the same platform. Usual character encodings for the different platforms are: Windows = ISO-8859-1, windows-1252
Import into the first record/all records found The Cumulus Importer performs a search for all the records or categories that match the defined relation between the catalog and the text file. In this option you can define if the data shall be imported into the first found record/category or into all found records/categories. Select 'First Record only', if you want the data to be imported only into the first found record. Select 'All records', if you want the data to be imported into all found records. Create new records for lines that do not correspond to existing records If the Importer does not find a corresponding record to import the metadata into, this preference allows to create new records in the catalog as the metadata destination. The new record that is created can be a complete new empty record or a copy of an existing record of the Cumulus catalog. This feature allows to have a dummy record already containing necessary metadata (like an asset reference or thumbnail image or other metadata) that is copied when a new record is needed. To duplicate a record you have to specify the unique record ID to identify the source record. Remark: if you specify a record ID that is not available in the current catalog during import, the Importer will create a new empty record instead of copying the source record. Keep/Overwrite Record Field Contents When importing data into a text field, the Cumulus Importer can overwrite the contents of the field or add the text to the contents. Select 'Overwrite', if the new text shall replace the text in the field of the record or category. Select 'Append', if the new text shall be appended to the text in the field of the record. Create missing categories in the category list when importing into the Category Field Select 'Assign available categories only', if you want to import only the categories that have already been created in the Cumulus category list. If a category (hierarchy) is not available in the category list, the missing category can not be assigned, of course. So in this setup the assignment of categories to records might be a two-step process: first import creates the categories in the category list and in a second import the available categories are assigned to the record(s). Select 'Create missing categories' to create the category (hierarchy) in the Cumulus category tree while importing metadata. The category (hierarchy) will be created and the new sub-category will be assigned to the record. Create missing list entries when importing into TEXT LIST fields Select 'Assign available list entries only', if you want to import only the list entries that have already been created in the Cumulus field definition of the Text List field. If a specified entry is not available in the list, the missing entry can not be assigned, of course. So in this setup the assignment of list entries to records might be a two-step process: first import creates the list entry in the list field definition and in a second import the available list entries are assigned to the record(s). Select 'Create missing list entries' to create the list entries in the Cumulus field definition while importing metadata. The list entry will be created and will be assigned to the record.
5.3 Cumulus Importer Preferences
Find and Replace Metadata while importing into Cumulus Record text fields With this function you can replace some metadata while importing into the Cumulus Catalog. The configuration is a list of find-and-replace statements, separated by the character '|'. find text 1=replace text 1|find text 2=replace text 2|find text 3=replace text 3|... A search will be performed for all occurences inside the text and all these occurrences will be replaced by 'replace text'. Example: Import Text: Canto<reg/> Cumulus<reg/> Digital Asset Management System will be modified to: Canto® Cumulus®Digital Asset Management System. With this function you can also insert new line and other special characters. The field values in the import text file can not contain new line characters, but you can add special characters or html tags to indicate the new line and replace these lateron. The find-and-replace statement '<br/>=\n' will convert the HTML break (new line) by 'real' new lines characters that are valid in Cumulus Text fields. Import Text example: 'Germany<br/>France<br/>Spain<br/>Greece will be modified at import time by this rule to: Germany So the field value inside the Cumulus Record will contain new line characters (CrLf) between these words. With the help of this function you are also able to convert HTML text to real text without HTML tags while importing into the Cumulus Catalog.
Log Errors If you select this option, all error messages are saved in a log file. This option should always be active. Log Messages If you select this option, all common messages are saved in a log file. The common messages might give you more information in case the data is not imported as expected.
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 6 The Import File | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
With the Cumulus Importer you can handle all the data that comes from your data sources like an Enterprise Resource Planning System or a Merchandise Management System or just from a Microsoft Excel Spreadsheet or a simple Microsoft Word text file. A lot of applications provide a function to save the data in a tabulator delimited text file format. In some applications this is part of the 'Save...' or 'Save as...' function, in other applications it is an 'Export...' functionality. Please make sure that the data is saved in a format where every record is exported into one line of the text file, and every field information is one column seperated by a TABULATOR character. Export from Microsoft Excel In Microsoft Excel just select the area in the spreadsheet that you want to export and save the data by using 'Save as...'. In the Save Dialog select the format 'Text (Tab delimited)'. Your metadata is now ready to be imported into Cumulus. Export from other Database Systems, like Microsoft SQL, Oracle, Microsoft Access, Claris FileMaker, ... All database systems provide the functionality to export the data in a tab delimited format. Use this function to prepare your metadata from the Cumulus Importer. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 7 Further Information | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
7.1 Cumulus Importer - Special Functions In addition to the basic functions of the Cumulus Importer, that allow the import of metadata into a Cumulus Catalog, we have implemented a lot of functionality that should make the configuration of the import easy and flexible. In this chapter we would like to introduce some of these functions. 7.1.1 Support of Multi Catalog Collections In the Cumulus Client you can open more than one catalog in more than one window at a time. Even one catalog might be open in two different windows at the same time. If there is more than one catalog open when you try to import metadata, the Cumulus Importer will ask you to specify the catalog you would like to import the metadata into:
If you are using an Importscheme file containing the import configuration, the file also specifies the catalog name for the import. The Cumulus Importer will try to find the specified catalog in all the open Cumulus Client Collection windows. If the catalog is not open, you will be asked to open it before you can start the import process. 7.1.2 Support of String List Fields - Multi-Select A Cumulus Catalog also supports String List Fields with Multi-Selection. In the example catalog 'furniture' you will find a field named 'Multi Colors' that is defined as a multi-select list field (checkbox 'Enable Multi-Select'). If you want to import into List Fields with Multi-Selection, you can just specify the list entries separated by ','. The separator that is used is the 'Category Delimiter' and can be specified in the preferences (default: ',').
The single entries will be assigned to the Cumulus records. You can specify in the preferences, if only the list entries that are already available in the Catalog shall be used, or if missing list entries should be created automatically. In the example below the list entries have been created in a first import and then, in a second import the values have been assigned to the records.
In this example the preferences have been set to 'Create missing list entries' and the import has been started with an empty definition for the list field 'Multi Colors'.
Using these preferences only the missing list entries were created and then the entries have been assigned to the record, but all in one import process. Your feedback is very much welcome! Please send all your questions about the product to the email address support@heymann-consulting.de. We try hard to answer your questions quickly and improve our products by implementing functionality based on your feedback. Remark: we do not offer a telephone hotline for this product. Please send in all your requests by email. If you have any further questions or problems with the software, please send an email to support@heymann-consulting.de. If you have any problems to define the right assignments for your specific needs, please send an example file so we can help you define the field assignments for the Cumulus Importer. We hope our product will increase your productivity in your workflow. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 8 Version History | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Version 8.6.0 - February 2013 New release to support Cumulus 8.6 with changes to support the new Cumulus 8.6 technologies + additional functionality: - New import function to create new records in the catalog. The new records can be created as new empty records or as duplicates of existing records in the catalog. Version 8.5.0 - June 2012 New release to support Cumulus 8.5 and 8.6 with minor internal changes to support the new Canto technology. Version 8.0.1 - December 2010 Bugfix Release: 1. An error occurred when the category level delimiter has been set to ':'. The hierarchy is from now on created correctly, even if the delimiter is set to ':'. Version 8.0.1 v1 - January 2011 1. An error occured (name of the last import field in a scheme file not displayed), when the last import value of the first line was empty - fixed. Version 8.0.0.3 - Juli 2010 Bugfix Release: the JVM (Java Virtual Machine) coming with the Cumulus Client does not support custom Icons in dialog. The icons in the License and Info Dialog have been removed. Version 8.0 - April 2010 Official release of the Cumulus Importer for Canto Cumulus 8. In addition to a lot of minor changes the following new features have been implemented: - optimized for Canto Cumulus 8, now based on the Cumulus Java Classes 8 which makes the metadata import up to 10 times faster than using the Cumulus 7 Java Classes technology Version 7.5 - January 2008 Official release of the Cumulus Importer for Canto Cumulus 7.5. The following changes have been implemented: - optimized for Canto Cumulus 7.5 Version 6.6 - November 2005 Official release of the Cumulus Importer for Canto Cumulus 6.6. The software comes with a new licensing mechanism and log file improvements. The following changes have been implemented: - support
the Java Classes of Canto Cumulus 6.6 Workgroup Edition, Single User
and MediaDex Version 6.0.4 - August 2005 The version 6.0.4 has been changed to support Cumulus 6.6. Due to an error in the Canto Java Classes, the version 6.0.3 of the Cumulus Importer can not be used with the Cumulus 6.6 version. The Importer now uses a Windows-specific linebreak in the log file and does not trim the additional information anymore. Version 6.0.3 In version 6.0.3 the log file gives information about all search criteria that did not find any records. The log file also provides information about the line number of the import file if a valid search query could not be generated out of the import data. A problem has been fixed with 'dirty' import files. The application hang when the number of columns in a line of the import file was higher than the specified number of columns in the fields assignment. Now Cr Lf (Carriage Return Linefeed) is replaced by it Unicode equivalent. Version 6.0.2 The version 6.0.2 fixes a bug that occured when importing category hierarchies into the category list. With this new version you can import in 'Date Only' fields also. Version 6.0.1 The version 6.0.1 adds a new function to assign category hierarchies to Cumulus records. The lowest category name in the hierarchy will be assigned to the record. The category names in the category hierarchy of your import file has to be delimited by the 'Category Level Delimiter' defined in the preferences of your Cumulus Importer. The new product comes with a new set of product IDs provided by Canto. The new product IDs start with 11202-... . If you have received older product IDs with your Cumulus Importer (11200-...) you can get a new product ID from us for free. Version 6.0 The version 6.0 is the first version of the Cumulus Importer for Canto Cumulus 6. This implementation of the Cumulus Importer is based on the EJaP (Embedded Java PlugIn) Technology introduced by Canto with version 6 of Cumulus. The first versions of the Cumulus Importer (1.0, 2.0 and 2.5) have been released for MacOS (Technology: AppleScript) and version 3.x for Windows. Version 3.1 is the current version to use to import data into a Cumulus 5.x catalog.
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
